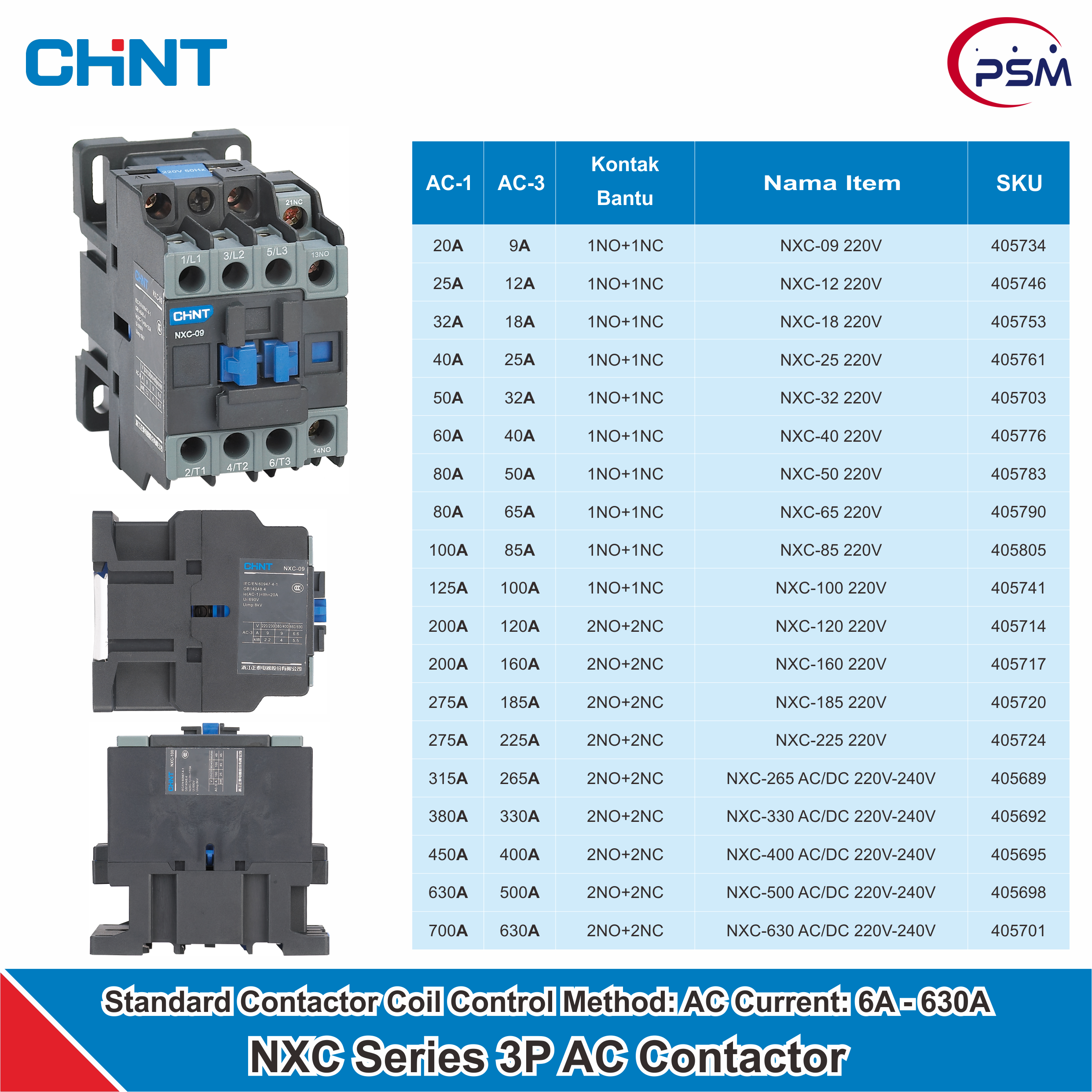

CHINT NXC Series 3P AC Contactor 9A – 630A 50/60Hz
In Stock

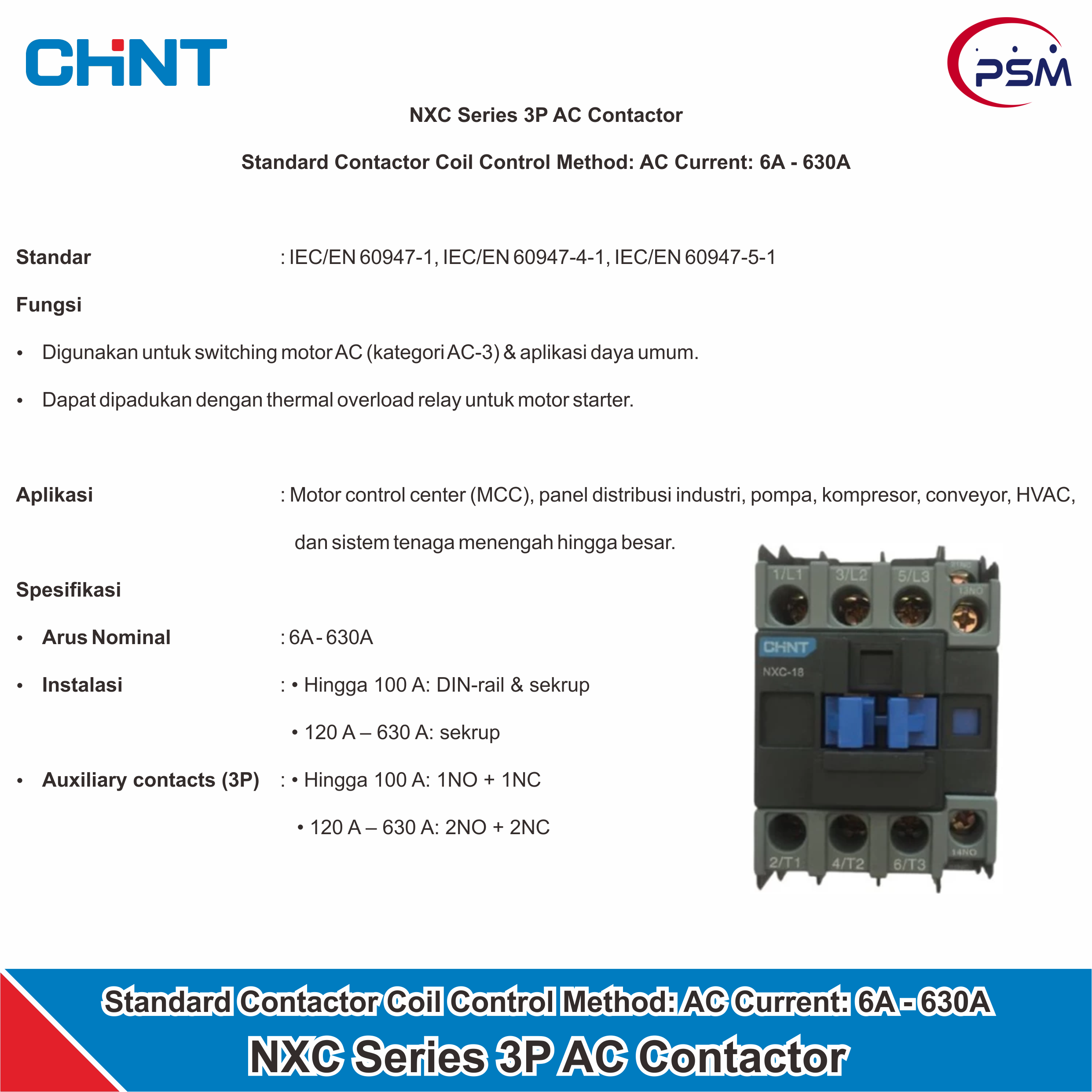

NXC Series 3P AC Contactor
Standard Contactor Coil Control Method: AC Current: 6A – 630A
Standar : IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1
Fungsi :
-
- Digunakan untuk switching motor AC (kategori AC-3) & aplikasi daya umum.
- Dapat dipadukan dengan thermal overload relay untuk motor starter.
Aplikasi :
Motor control center (MCC), panel distribusi industri, pompa, kompresor, conveyor, HVAC, dan sistem tenaga menengah hingga besar.
Spesifikasi :
-
- Arus nominal : 9A – 630A
- Instalasi :
- Hingga 100 A: DIN-rail & sekrup
- 120 A – 630 A: sekrup
- Auxiliary contacts (3P) :
- Hingga 100 A: 1NO + 1NC
- 120 A – 630 A: 2NO + 2NC
*Tersedia di Coil Voltage: 24V, 36V, 48V, 110V, 220V, 400V. Mohon menghubungi kami.
AC-1 – AC-3 – Kontak Bantu – Nama Item – SKU – Harga
20A – 9A – 1NO+1NC – NXC-09 220V – 405734 – Rp. 122.609
25A – 12A – 1NO+1NC – NXC-12 220V – 405746 – Rp. 127.299
32A – 18A – 1NO+1NC – NXC-18 220V – 405753 – Rp. 160.129
40A – 25A – 1NO+1NC – NXC-25 220V – 405761 – Rp. 198.319
50A – 32A – 1NO+1NC – NXC-32 220V – 405703 – Rp. 290.779
60A – 40A – 1NO+1NC – NXC-40 220V – 405776 – Rp. 432.149
80A – 50A – 1NO+1NC – NXC-50 220V – 405783 – Rp. 468.999
80A – 65A – 1NO+1NC – NXC-65 220V – 405790 – Rp. 542.029
100A – 85A – 1NO+1NC – NXC-85 220V – 405805 – Rp. 824.099
125A – 100A – 1NO+1NC – NXC-100 220V – 405741 – Rp. 924.599
200A – 120A – 2NO+2NC – NXC-120 220V – 405714 – Rp. 1.741.999
200A – 160A – 2NO+2NC – NXC-160 220V – 405717 – Rp. 1.808.999
275A – 185A – 2NO+2NC – NXC-185 220V – 405720 – Rp. 2.344.999
275A – 225A – 2NO+2NC – NXC-225 220V – 405724 – Rp. 2.746.999
315A – 265A – 2NO+2NC – NXC-265 AC/DC 220V-240V – 405689 – Rp. 3.215.999
380A – 330A – 2NO+2NC – NXC-330 AC/DC 220V-240V – 405692 – Rp. 4.823.999
450A – 400A – 2NO+2NC – NXC-400 AC/DC 220V-240V – 405695 – Rp. 5.091.999
630A – 500A – 2NO+2NC – NXC-500 AC/DC 220V-240V – 405698 – Rp. 7.146.889
700A – 630A – 2NO+2NC – NXC-630 AC/DC 220V-240V – 405701 – Rp. 9.848.999
Description
~ DISTRIBUTOR barang Electrical BERKUALITAS ~
Kualitas barang sangat kami perhatikan untuk kepuasan pelanggan.
Pengiriman barang senin – sabtu pesanan yang masuk sudah terverifikasi sebelum jam 14.00 siang akan di kirimkan di hari yang sama.
Pengiriman Barang dan Resi kurang lebih 1-2 hari kerja.
Garansi Barang (Dengan syarat bukan Kelalaian Pelanggan).
Hari Minggu dan tanggal merah LIBUR.
Segala macam kritik dan saran dari pelanggan kita sambut dengan baik (Dengan syarat Sopan).
Informasi lebih lanjut silahkan beri PESAN kepada kami. Terima Kasih Banyak ^^
~KEPUASAN PELANGGAN ADALAH KEUTAMAAN UNTUK KAMI~
