CHINT CC Closing Coil AC220 587670 for ACB NXA16~63-CC-AC220
Original price was: Rp1,222,999.00.Rp819,409.00Current price is: Rp819,409.00.
In StockNXA Series Aksesoris

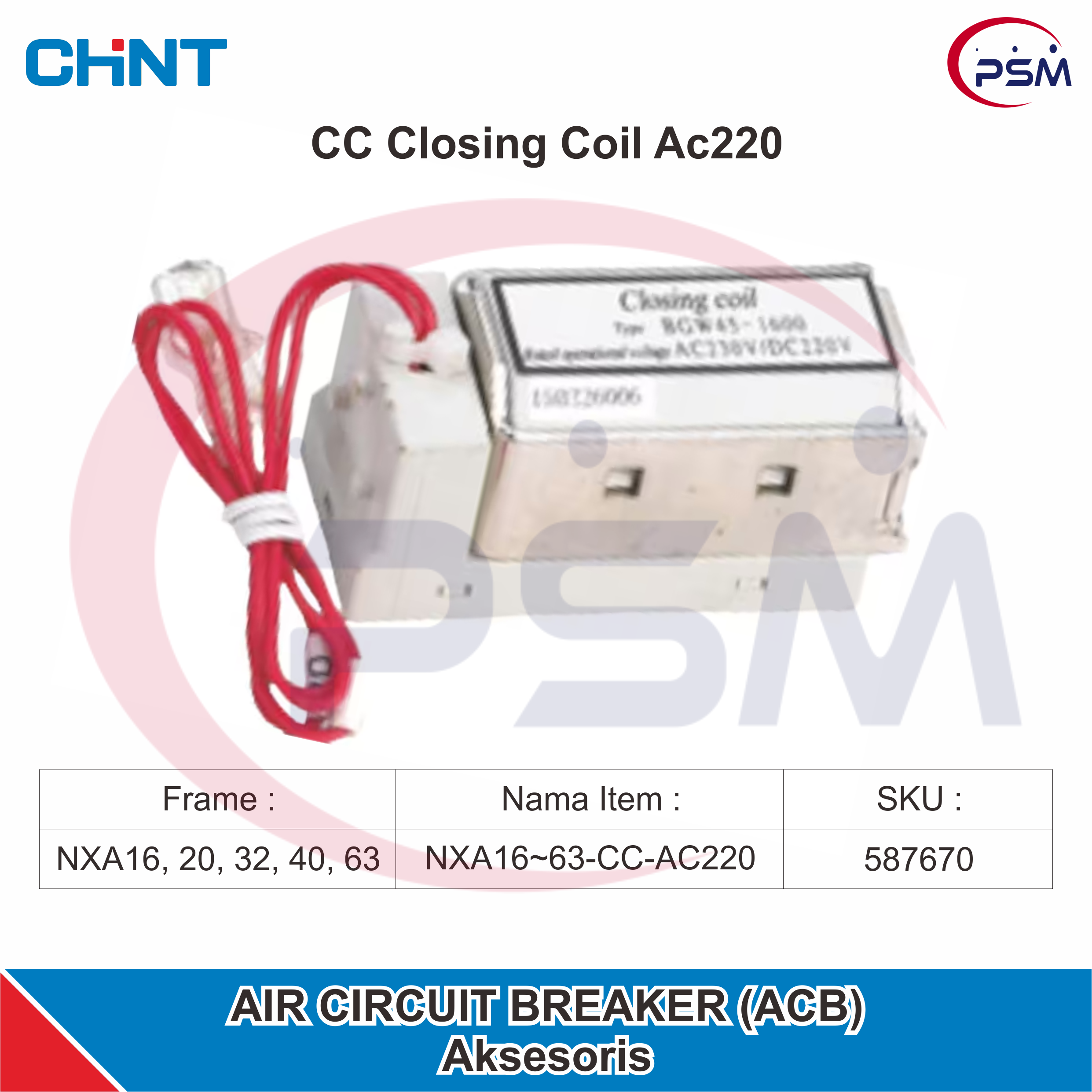

CC Closing Coil AC220
Fungsi : sebagai aktuator elektromagnetik yang menerima sinyal listrik jarak jauh untuk memicu operasi penutupan (menyalakan) ACB.
Kompatibel dengan ACB frame : NXA16, 20, 32, 40, 63
Description
~ DISTRIBUTOR barang Electrical BERKUALITAS ~
Kualitas barang sangat kami perhatikan untuk kepuasan pelanggan.
Pengiriman barang senin – sabtu pesanan yang masuk sudah terverifikasi sebelum jam 14.00 siang akan di kirimkan di hari yang sama.
Pengiriman Barang dan Resi kurang lebih 1-2 hari kerja.
Garansi Barang (Dengan syarat bukan Kelalaian Pelanggan).
Hari Minggu dan tanggal merah LIBUR.
Segala macam kritik dan saran dari pelanggan kita sambut dengan baik (Dengan syarat Sopan).
Informasi lebih lanjut silahkan beri PESAN kepada kami. Terima Kasih Banyak ^^
~KEPUASAN PELANGGAN ADALAH KEUTAMAAN UNTUK KAMI~
