transformer
-
Kami menyediakan layanan perbaikan, pemeliharaan, dan rekondisi trafo distribusi berkapasitas 200 kVA hingga 4000 kVA dengan standar kerja profesional dan peralatan modern. Layanan ini mencakup trafo segala brand jenis oil immersed maupun dry type, baik untuk kebutuhan industri, gedung komersial, maupun instalasi utilitas.
Ruang lingkup pekerjaan:
- Pemasangan dan Pergantian trafo
-
Inspeksi dan diagnosa awal kondisi trafo (fisik & kelistrikan).
-
Perbaikan kerusakan pada belitan, inti, atau sistem pendingin.
-
Penggantian komponen seperti bushing, tap changer, gasket, atau sistem proteksi.
-
Pengurasan dan penggantian minyak trafo (oil treatment) sesuai standar IEC/PLN.
-
Pembersihan internal & eksternal untuk menjaga kinerja optimal.
-
Pengujian kelistrikan (insulation resistance, winding resistance, turns ratio, dll.).
-
Uji beban dan commissioning untuk memastikan performa pasca perbaikan.
Keunggulan layanan kami:
-
Tenaga teknisi bersertifikat dan berpengalaman.
-
Proses perbaikan cepat dengan tetap mengutamakan kualitas dan keamanan.
-
Penggunaan peralatan uji dan perbaikan berstandar industri.
-
Laporan hasil pekerjaan lengkap dan transparan.
Dengan perawatan dan perbaikan yang tepat, umur pakai trafo distribusi dapat diperpanjang sekaligus mengoptimalkan efisiensi operasional.
Price : Call Us
-
Daftar Harga Metering CT Class 0,5 & 15VA, 60-1600/5A
RATIO ID (mm) OD (mm) H (mm) Harga Katalog ~ Harga Jual 60/5A 35 95 95 2.570.400 ~ 1.722.168 100/5A 35 95 55 1.561.200 ~ 1.046.004 150/5A 45 95 45 1.304.400 ~ 873.948 200/5A 45 95 45 1.390.800 ~ 931.836 250/5A 45 80 55 1.411.200 ~ 945.504 300/5A 45 80 55 1.440.000 ~ 964.800 400/5A 45 80 55 1.468.800 ~ 984.096 500/5A 65 100 35 903.600 ~ 605.412 600/5A 65 100 35 967.200 ~ 648.024 800/5A 90 130 30 1.024.800 ~ 686.616 1000/5A 90 130 30 1.056.000 ~ 707.520 1200/5A 90 130 30 1.148.400 ~ 769.428 1600/5A 90 130 30 1.269.600 ~ 850.632 Untuk Informasi Ketersediaan dan Harga Terkni : Hubungi kami
Product Description

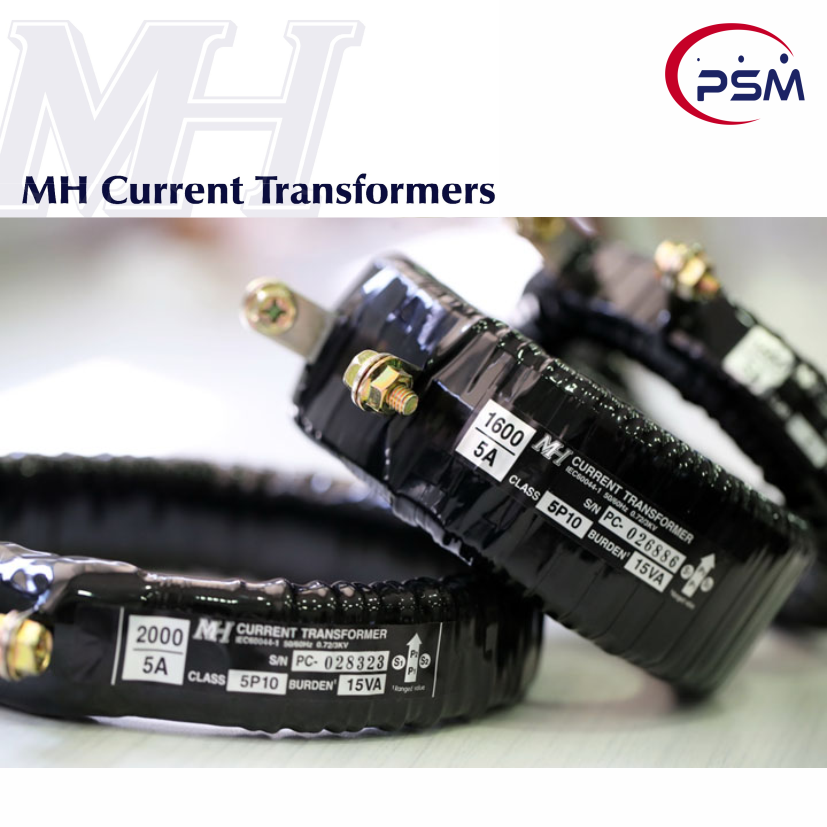

MH Current Transformer (MH CT) is used in energy metering and protection application. Designed for use in low voltage 50/60Hz network, the current transformer is installed in electrical switch board, control panel or motor control centre. High grade annealed grainoriented silicon steel is used for current transformer’s core to provide improved accuracy and linearity of measurement.
The MH Current Transformer can be directly installed onto bare copper busbar up to 720VAC rating. Available in a wide variety of dimensions and current ratio rating. Connection to the secondary winding is made via two bolt terminals. Customized model can be manufactured to
customer specification.MH Current Transformer is designed, manufactured and tested in accordance with IEC 60044-1 and IEC 61869-1/2 standards. This ensures that each current transformer delivers accurate
measurements when operating at the rated current or within the defined accuracy limit factors.
Metering CT / Selection Guide
- Class 0.2 : For measuring the energy for revenue proposes. Maximum of 0.2% ratio error at 100% rated current.
- Class 0.5S : For measuring the energy purposes. Maximum of 0.5% ratio error from 20% rated current and above.
- Class 0.5 : For measuring the energy purposes. Maximum of 0.5% ratio error at 100% rated current.
- Class 1 : For general metering. Maximum of 1.0% ratio error at 100% rated current
Technical Data
- Construction : Tape wound toroidal
- Highest voltage : 0.72V
- Rated insulation level : 3kV 60 sec
- Rated frequency : 50 or 60Hz
- Insulating material : Homopolymer Polyvinyl Chloride
- Class of insulation : B
- Rated short-time thermal current : 60 x Ipri (100kA max)
- Applied technical standards : IEC 61869-1, IEC 61869-2
- Certificates : CE, UKCA, RoHS
⚡ SOLUSI TERPADU MECHANICAL & ELECTRICAL (M&E) ⚡
Kami hadir sebagai mitra terpercaya untuk kebutuhan kelistrikan, tenaga listrik, dan fasilitas bangunan industri maupun komersial.
🔹 Produk Kelistrikan
✓ MCB
✓ MCCB
✓ ACB
✓ Capacitor Bank
✓ Active Harmonic Filter (AHF)
✓ Detuned Reactor
✓ Lightning Counter
✓ Berbagai aksesoris kelistrikan🔹 Panel Listrik
✓ Panel MDP / LVMDP
✓ Panel SDP
✓ Panel ATS
✓ Panel AMF
✓ Panel Capacitor Bank
✓ Panel Kontrol Motor
✓ Panel Lightning Protection
✓ Custom Panel sesuai kebutuhan🔹 Transformator (Trafo)
✓ Pengadaan Unit Baru
✓ Pemasangan & Penggantian
✓ Tambah Daya
✓ Inspeksi & Diagnosa
✓ Perbaikan & Penggantian Komponen
✓ Penggantian Oli Trafo
✓ Testing & Commissioning🔹 Cubicle Tegangan Menengah
✓ Pengadaan & Instalasi
✓ Konstruksi Lapangan
✓ Testing & Commissioning
✓ Maintenance & Troubleshooting🔹 Sistem Penangkal Petir & Grounding
✓ Sistem Konvensional
✓ Sistem Elektrostatik
✓ Grounding System
✓ Pengujian & Sertifikasi🔹 UPS & Genset
✓ Pengadaan Unit Baru
✓ Instalasi & Integrasi Sistem
✓ Testing & Commissioning
✓ Maintenance & Troubleshooting🔹 Elevator & Escalator
✓ Pengadaan & Instalasi
✓ Modernisasi Sistem
✓ Maintenance Berkala
✓ Perbaikan & Troubleshooting🔹 Pembangunan Gardu Listrik
✓ Engineering Design
✓ Konstruksi Sipil
✓ Instalasi Mekanikal & Elektrikal
✓ Testing & Commissioning
✓ Rehabilitasi & Perawatan🏭 Melayani kebutuhan:
• Pabrik & Industri
• Gedung Perkantoran
• Rumah Sakit
• Hotel
• Mall & Pusat Perbelanjaan
• Sekolah & Kampus
• Kawasan Industri
• Fasilitas Pemerintah📞 Hubungi kami untuk konsultasi, survei lapangan, maupun penawaran harga terbaik sesuai kebutuhan proyek Anda.
-
Daftar Harga Metering CT Class 0.5 & 5VA, 60-2500/5A
RATIO ID (mm) OD (mm) H (mm) Harga Katalog Harga Jual 60/5A 35 95 55 Rp. 1.449.600~ Rp. 971.232 100/5A 35 70 55 Rp. 897.600~ Rp. 601.392 150/5A 45 80 55 Rp. 793.200~ Rp. 531.444 200/5A 45 80 55 Rp. 793.200~ Rp. 531.444 250/5A 45 80 35 Rp. 793.200~ Rp. 531.444 300/5A 45 80 35 Rp. 793.200~ Rp. 531.444 400/5A 45 80 35 Rp. 793.200~ Rp. 531.444 500/5A 65 100 25 Rp. 793.200~ Rp. 531.444 600/5A 65 100 25 Rp. 722.400~ Rp. 484.008 800/5A 90 130 30 Rp. 1.284.000~ Rp. 860.280 1000/5A 90 130 30 Rp. 1.063.200~ Rp. 712.344 1200/5A 90 130 30 Rp. 1.150.800~ Rp. 771.036 1600/5A 90 130 30 Rp. 1.275.600~ Rp. 854.652 2000/5A 130 165 30 Rp. 1.015.200~ Rp. 680.184 2500/5A 130 165 30 Rp. 1.123.200~ Rp. 752.544 Untuk Informasi Ketersediaan dan Harga Terkni : Hubungi kami
Product Description
MH Current Transformer (MH CT) is used in energy metering and protection application. Designed for use in low voltage 50/60Hz network, the current transformer is installed in electrical switch board, control panel or motor control centre. High grade annealed grainoriented silicon steel is used for current transformer’s core to provide improved accuracy and linearity of measurement.
The MH Current Transformer can be directly installed onto bare copper busbar up to 720VAC rating. Available in a wide variety of dimensions and current ratio rating. Connection to the secondary winding is made via two bolt terminals. Customized model can be manufactured to
customer specification.MH Current Transformer is designed, manufactured and tested in accordance with IEC 60044-1 and IEC 61869-1/2 standards. This ensures that each current transformer delivers accurate
measurements when operating at the rated current or within the defined accuracy limit factors.
Metering CT / Selection Guide
- Class 0.2 : For measuring the energy for revenue proposes. Maximum of 0.2% ratio error at 100% rated current.
- Class 0.5S : For measuring the energy purposes. Maximum of 0.5% ratio error from 20% rated current and above.
- Class 0.5 : For measuring the energy purposes. Maximum of 0.5% ratio error at 100% rated current.
- Class 1 : For general metering. Maximum of 1.0% ratio error at 100% rated current
Technical Data
- Construction : Tape wound toroidal
- Highest voltage : 0.72V
- Rated insulation level : 3kV 60 sec
- Rated frequency : 50 or 60Hz
- Insulating material : Homopolymer Polyvinyl Chloride
- Class of insulation : B
- Rated short-time thermal current : 60 x Ipri (100kA max)
- Applied technical standards : IEC 61869-1, IEC 61869-2
- Certificates : CE, UKCA, RoHS
⚡ SOLUSI TERPADU MECHANICAL & ELECTRICAL (M&E) ⚡
Kami hadir sebagai mitra terpercaya untuk kebutuhan kelistrikan, tenaga listrik, dan fasilitas bangunan industri maupun komersial.
🔹 Produk Kelistrikan
✓ MCB
✓ MCCB
✓ ACB
✓ Capacitor Bank
✓ Active Harmonic Filter (AHF)
✓ Detuned Reactor
✓ Lightning Counter
✓ Berbagai aksesoris kelistrikan🔹 Panel Listrik
✓ Panel MDP / LVMDP
✓ Panel SDP
✓ Panel ATS
✓ Panel AMF
✓ Panel Capacitor Bank
✓ Panel Kontrol Motor
✓ Panel Lightning Protection
✓ Custom Panel sesuai kebutuhan🔹 Transformator (Trafo)
✓ Pengadaan Unit Baru
✓ Pemasangan & Penggantian
✓ Tambah Daya
✓ Inspeksi & Diagnosa
✓ Perbaikan & Penggantian Komponen
✓ Penggantian Oli Trafo
✓ Testing & Commissioning🔹 Cubicle Tegangan Menengah
✓ Pengadaan & Instalasi
✓ Konstruksi Lapangan
✓ Testing & Commissioning
✓ Maintenance & Troubleshooting🔹 Sistem Penangkal Petir & Grounding
✓ Sistem Konvensional
✓ Sistem Elektrostatik
✓ Grounding System
✓ Pengujian & Sertifikasi🔹 UPS & Genset
✓ Pengadaan Unit Baru
✓ Instalasi & Integrasi Sistem
✓ Testing & Commissioning
✓ Maintenance & Troubleshooting🔹 Elevator & Escalator
✓ Pengadaan & Instalasi
✓ Modernisasi Sistem
✓ Maintenance Berkala
✓ Perbaikan & Troubleshooting🔹 Pembangunan Gardu Listrik
✓ Engineering Design
✓ Konstruksi Sipil
✓ Instalasi Mekanikal & Elektrikal
✓ Testing & Commissioning
✓ Rehabilitasi & Perawatan🏭 Melayani kebutuhan:
• Pabrik & Industri
• Gedung Perkantoran
• Rumah Sakit
• Hotel
• Mall & Pusat Perbelanjaan
• Sekolah & Kampus
• Kawasan Industri
• Fasilitas Pemerintah📞 Hubungi kami untuk konsultasi, survei lapangan, maupun penawaran harga terbaik sesuai kebutuhan proyek Anda.
-
Daftar Harga Metering CT Class 1 & 15VA , 60-1600/5A
RATIO ID (mm) OD (mm) H (mm) Harga Katalog ~ Harga Jual 60 / 1A 40 85 90 2.696.400 ~ 1.806588 100 / 1A 40 85 50 177.960 ~ 119.233,2 150 / 1A 50 70 50 1.292.400 ~ 865.908 200 / 1A 50 70 50 1.526.400 ~ 1.022.688 250 / 1A 50 70 30 1.206.000 ~ 808.020 300 / 1A 50 70 30 1.347.600 ~ 902.892 400 / 1A 70 85 30 1.512.000 ~ 1.013.040 500 / 1A 70 85 30 1.800.000 ~ 1.206.000 600 / 1A 70 85 30 2.089.200 ~ 1.399.764 800 / 1A 98 113 20 1.728.000 ~ 1.157.760 1000 / 1A 98 113 20 2.089.200 ~ 1.399.764 1200 / 1A 98 113 20 2.408.400 ~ 1.613.628 1400 / 1A 70 145 40 2.731.200 ~ 1.829.904 1500 / 1A 98 113 20 2.930.400 ~ 1.963.368 1600 / 1A 98 113 20 3.092.400 ~ 2.071.908 Untuk Informasi Ketersediaan dan Harga Terkni : Hubungi kami
Product Description
MH Current Transformer (MH CT) is used in energy metering and protection application. Designed for use in low voltage 50/60Hz network, the current transformer is installed in electrical switch board, control panel or motor control centre. High grade annealed grainoriented silicon steel is used for current transformer’s core to provide improved accuracy and linearity of measurement.
The MH Current Transformer can be directly installed onto bare copper busbar up to 720VAC rating. Available in a wide variety of dimensions and current ratio rating. Connection to the secondary winding is made via two bolt terminals. Customized model can be manufactured to
customer specification.MH Current Transformer is designed, manufactured and tested in accordance with IEC 60044-1 and IEC 61869-1/2 standards. This ensures that each current transformer delivers accurate
measurements when operating at the rated current or within the defined accuracy limit factors.
Metering CT / Selection Guide
- Class 0.2 : For measuring the energy for revenue proposes. Maximum of 0.2% ratio error at 100% rated current.
- Class 0.5S : For measuring the energy purposes. Maximum of 0.5% ratio error from 20% rated current and above.
- Class 0.5 : For measuring the energy purposes. Maximum of 0.5% ratio error at 100% rated current.
- Class 1 : For general metering. Maximum of 1.0% ratio error at 100% rated current
Technical Data
- Construction : Tape wound toroidal
- Highest voltage : 0.72V
- Rated insulation level : 3kV 60 sec
- Rated frequency : 50 or 60Hz
- Insulating material : Homopolymer Polyvinyl Chloride
- Class of insulation : B
- Rated short-time thermal current : 60 x Ipri (100kA max)
- Applied technical standards : IEC 61869-1, IEC 61869-2
- Certificates : CE, UKCA, RoHS
⚡ SOLUSI TERPADU MECHANICAL & ELECTRICAL (M&E) ⚡
Kami hadir sebagai mitra terpercaya untuk kebutuhan kelistrikan, tenaga listrik, dan fasilitas bangunan industri maupun komersial.
🔹 Produk Kelistrikan
✓ MCB
✓ MCCB
✓ ACB
✓ Capacitor Bank
✓ Active Harmonic Filter (AHF)
✓ Detuned Reactor
✓ Lightning Counter
✓ Berbagai aksesoris kelistrikan🔹 Panel Listrik
✓ Panel MDP / LVMDP
✓ Panel SDP
✓ Panel ATS
✓ Panel AMF
✓ Panel Capacitor Bank
✓ Panel Kontrol Motor
✓ Panel Lightning Protection
✓ Custom Panel sesuai kebutuhan🔹 Transformator (Trafo)
✓ Pengadaan Unit Baru
✓ Pemasangan & Penggantian
✓ Tambah Daya
✓ Inspeksi & Diagnosa
✓ Perbaikan & Penggantian Komponen
✓ Penggantian Oli Trafo
✓ Testing & Commissioning🔹 Cubicle Tegangan Menengah
✓ Pengadaan & Instalasi
✓ Konstruksi Lapangan
✓ Testing & Commissioning
✓ Maintenance & Troubleshooting🔹 Sistem Penangkal Petir & Grounding
✓ Sistem Konvensional
✓ Sistem Elektrostatik
✓ Grounding System
✓ Pengujian & Sertifikasi🔹 UPS & Genset
✓ Pengadaan Unit Baru
✓ Instalasi & Integrasi Sistem
✓ Testing & Commissioning
✓ Maintenance & Troubleshooting🔹 Elevator & Escalator
✓ Pengadaan & Instalasi
✓ Modernisasi Sistem
✓ Maintenance Berkala
✓ Perbaikan & Troubleshooting🔹 Pembangunan Gardu Listrik
✓ Engineering Design
✓ Konstruksi Sipil
✓ Instalasi Mekanikal & Elektrikal
✓ Testing & Commissioning
✓ Rehabilitasi & Perawatan🏭 Melayani kebutuhan:
• Pabrik & Industri
• Gedung Perkantoran
• Rumah Sakit
• Hotel
• Mall & Pusat Perbelanjaan
• Sekolah & Kampus
• Kawasan Industri
• Fasilitas Pemerintah📞 Hubungi kami untuk konsultasi, survei lapangan, maupun penawaran harga terbaik sesuai kebutuhan proyek Anda.
-
Daftar Harga Metering CT Class 1 & 15VA, 60-6000/5A
RATIO ID (mm) OD (mm) H (mm) Harga Katalog Harga Jual 60/5A 35 70 55 519.600 ~ 348.132 100/5A 35 70 55 537.600 ~ 360.192 150/5A 45 80 55 634.800 ~ 425.316 200/5A 45 80 55 661.200 ~ 443.004 250/5A 45 80 55 474.000 ~ 317.580 300/5A 45 80 35 505.200 ~ 338.484 400/5A 45 80 35 537.600 ~ 360.192 500/5A 65 100 35 556.800 ~ 373.056 600/5A 65 100 35 591.600 ~ 396.372 800/5A 65 100 35 669.600 ~ 448.632 1000/5A 90 130 30 606.000 ~ 406.020 1200/5A 90 130 30 663.600 ~ 444.612 1500/5A 90 130 30 747.600 ~ 500.892 1600/5A 90 130 30 776.400 ~ 520.188 2000/5A 130 165 30 846.000 ~ 566.820 2500/5A 130 165 30 981.600 ~ 657.672 3000/5A 130 165 30 1.117.200 ~ 748.524 3200/5A 130 165 30 1.177.200 ~ 788.724 3500/5A 125 170 30 1.255.200 ~ 840.984 4000/5A 125 170 35 1.390.800 ~ 931.836 5000/5A 125 170 35 1.659.600 ~ 1111.932 6000/5A 125 170 35 1.933.200 ~ 1.295.244 Untuk Informasi Ketersediaan dan Harga Terkni : Hubungi kami
Product Description
MH Current Transformer (MH CT) is used in energy metering and protection application. Designed for use in low voltage 50/60Hz network, the current transformer is installed in electrical switch board, control panel or motor control centre. High grade annealed grainoriented silicon steel is used for current transformer’s core to provide improved accuracy and linearity of measurement.
The MH Current Transformer can be directly installed onto bare copper busbar up to 720VAC rating. Available in a wide variety of dimensions and current ratio rating. Connection to the secondary winding is made via two bolt terminals. Customized model can be manufactured to
customer specification.MH Current Transformer is designed, manufactured and tested in accordance with IEC 60044-1 and IEC 61869-1/2 standards. This ensures that each current transformer delivers accurate
measurements when operating at the rated current or within the defined accuracy limit factors.
Metering CT / Selection Guide
- Class 0.2 : For measuring the energy for revenue proposes. Maximum of 0.2% ratio error at 100% rated current.
- Class 0.5S : For measuring the energy purposes. Maximum of 0.5% ratio error from 20% rated current and above.
- Class 0.5 : For measuring the energy purposes. Maximum of 0.5% ratio error at 100% rated current.
- Class 1 : For general metering. Maximum of 1.0% ratio error at 100% rated current
Technical Data
- Construction : Tape wound toroidal
- Highest voltage : 0.72V
- Rated insulation level : 3kV 60 sec
- Rated frequency : 50 or 60Hz
- Insulating material : Homopolymer Polyvinyl Chloride
- Class of insulation : B
- Rated short-time thermal current : 60 x Ipri (100kA max)
- Applied technical standards : IEC 61869-1, IEC 61869-2
- Certificates : CE, UKCA, RoHS
⚡ SOLUSI TERPADU MECHANICAL & ELECTRICAL (M&E) ⚡
Kami hadir sebagai mitra terpercaya untuk kebutuhan kelistrikan, tenaga listrik, dan fasilitas bangunan industri maupun komersial.
🔹 Produk Kelistrikan
✓ MCB
✓ MCCB
✓ ACB
✓ Capacitor Bank
✓ Active Harmonic Filter (AHF)
✓ Detuned Reactor
✓ Lightning Counter
✓ Berbagai aksesoris kelistrikan🔹 Panel Listrik
✓ Panel MDP / LVMDP
✓ Panel SDP
✓ Panel ATS
✓ Panel AMF
✓ Panel Capacitor Bank
✓ Panel Kontrol Motor
✓ Panel Lightning Protection
✓ Custom Panel sesuai kebutuhan🔹 Transformator (Trafo)
✓ Pengadaan Unit Baru
✓ Pemasangan & Penggantian
✓ Tambah Daya
✓ Inspeksi & Diagnosa
✓ Perbaikan & Penggantian Komponen
✓ Penggantian Oli Trafo
✓ Testing & Commissioning🔹 Cubicle Tegangan Menengah
✓ Pengadaan & Instalasi
✓ Konstruksi Lapangan
✓ Testing & Commissioning
✓ Maintenance & Troubleshooting🔹 Sistem Penangkal Petir & Grounding
✓ Sistem Konvensional
✓ Sistem Elektrostatik
✓ Grounding System
✓ Pengujian & Sertifikasi🔹 UPS & Genset
✓ Pengadaan Unit Baru
✓ Instalasi & Integrasi Sistem
✓ Testing & Commissioning
✓ Maintenance & Troubleshooting🔹 Elevator & Escalator
✓ Pengadaan & Instalasi
✓ Modernisasi Sistem
✓ Maintenance Berkala
✓ Perbaikan & Troubleshooting🔹 Pembangunan Gardu Listrik
✓ Engineering Design
✓ Konstruksi Sipil
✓ Instalasi Mekanikal & Elektrikal
✓ Testing & Commissioning
✓ Rehabilitasi & Perawatan🏭 Melayani kebutuhan:
• Pabrik & Industri
• Gedung Perkantoran
• Rumah Sakit
• Hotel
• Mall & Pusat Perbelanjaan
• Sekolah & Kampus
• Kawasan Industri
• Fasilitas Pemerintah📞 Hubungi kami untuk konsultasi, survei lapangan, maupun penawaran harga terbaik sesuai kebutuhan proyek Anda.
-
Daftar Harga Metering CT Class 1 & 5VA, 60-3000/5A
60 / 5A : Harga = Rp. 298.800~ Rp. 200.196100 / 5A : Harga = Rp. 346.800~ Rp. 232.356150 / 5A : Harga = Rp. 324.000~ Rp. 217.080200 / 5A : Harga = Rp. 231.600~ Rp. 155.172250 / 5A : Harga = Rp. 246.000~ Rp. 164.820300 / 5A : Harga = Rp. 254.400~ Rp. 170.448400 / 5A : Harga = Rp. 285.600~ Rp. 191.352500 / 5A : Harga = Rp. 392.400~ Rp. 262.908600 / 5A : Harga = Rp. 422.400~ Rp. 283.008800 / 5A : Harga = Rp. 480.000~ Rp. 321.6001000 / 5A : Harga = Rp. 606.000~ Rp. 406.0201200 / 5A : Harga = Rp. 663.600~ Rp. 444.6121500 / 5A : Harga = Rp. 747.600~ Rp. 500.8921600 / 5A : Harga = Rp. 776.400~ Rp. 520.1882000 / 5A : Harga = Rp. 846.000~ Rp. 566.8202500 / 5A : Harga = Rp. 981.600~ Rp. 657.6723000 / 5A : Harga = Rp. 1.117.200~ Rp. 748.524
Untuk Informasi Ketersediaan dan Harga Terkni : Hubungi kami
Product Description
MH Current Transformer (MH CT) is used in energy metering and protection application. Designed for use in low voltage 50/60Hz network, the current transformer is installed in electrical switch board, control panel or motor control centre. High grade annealed grainoriented silicon steel is used for current transformer’s core to provide improved accuracy and linearity of measurement.
The MH Current Transformer can be directly installed onto bare copper busbar up to 720VAC rating. Available in a wide variety of dimensions and current ratio rating. Connection to the secondary winding is made via two bolt terminals. Customized model can be manufactured to
customer specification.MH Current Transformer is designed, manufactured and tested in accordance with IEC 60044-1 and IEC 61869-1/2 standards. This ensures that each current transformer delivers accurate
measurements when operating at the rated current or within the defined accuracy limit factors.
Metering CT / Selection Guide
- Class 0.2 : For measuring the energy for revenue proposes. Maximum of 0.2% ratio error at 100% rated current.
- Class 0.5S : For measuring the energy purposes. Maximum of 0.5% ratio error from 20% rated current and above.
- Class 0.5 : For measuring the energy purposes. Maximum of 0.5% ratio error at 100% rated current.
- Class 1 : For general metering. Maximum of 1.0% ratio error at 100% rated current
Technical Data
- Construction : Tape wound toroidal
- Highest voltage : 0.72V
- Rated insulation level : 3kV 60 sec
- Rated frequency : 50 or 60Hz
- Insulating material : Homopolymer Polyvinyl Chloride
- Class of insulation : B
- Rated short-time thermal current : 60 x Ipri (100kA max)
- Applied technical standards : IEC 61869-1, IEC 61869-2
- Certificates : CE, UKCA, RoHS
⚡ SOLUSI TERPADU MECHANICAL & ELECTRICAL (M&E) ⚡
Kami hadir sebagai mitra terpercaya untuk kebutuhan kelistrikan, tenaga listrik, dan fasilitas bangunan industri maupun komersial.
🔹 Produk Kelistrikan
✓ MCB
✓ MCCB
✓ ACB
✓ Capacitor Bank
✓ Active Harmonic Filter (AHF)
✓ Detuned Reactor
✓ Lightning Counter
✓ Berbagai aksesoris kelistrikan🔹 Panel Listrik
✓ Panel MDP / LVMDP
✓ Panel SDP
✓ Panel ATS
✓ Panel AMF
✓ Panel Capacitor Bank
✓ Panel Kontrol Motor
✓ Panel Lightning Protection
✓ Custom Panel sesuai kebutuhan🔹 Transformator (Trafo)
✓ Pengadaan Unit Baru
✓ Pemasangan & Penggantian
✓ Tambah Daya
✓ Inspeksi & Diagnosa
✓ Perbaikan & Penggantian Komponen
✓ Penggantian Oli Trafo
✓ Testing & Commissioning🔹 Cubicle Tegangan Menengah
✓ Pengadaan & Instalasi
✓ Konstruksi Lapangan
✓ Testing & Commissioning
✓ Maintenance & Troubleshooting🔹 Sistem Penangkal Petir & Grounding
✓ Sistem Konvensional
✓ Sistem Elektrostatik
✓ Grounding System
✓ Pengujian & Sertifikasi🔹 UPS & Genset
✓ Pengadaan Unit Baru
✓ Instalasi & Integrasi Sistem
✓ Testing & Commissioning
✓ Maintenance & Troubleshooting🔹 Elevator & Escalator
✓ Pengadaan & Instalasi
✓ Modernisasi Sistem
✓ Maintenance Berkala
✓ Perbaikan & Troubleshooting🔹 Pembangunan Gardu Listrik
✓ Engineering Design
✓ Konstruksi Sipil
✓ Instalasi Mekanikal & Elektrikal
✓ Testing & Commissioning
✓ Rehabilitasi & Perawatan🏭 Melayani kebutuhan:
• Pabrik & Industri
• Gedung Perkantoran
• Rumah Sakit
• Hotel
• Mall & Pusat Perbelanjaan
• Sekolah & Kampus
• Kawasan Industri
• Fasilitas Pemerintah📞 Hubungi kami untuk konsultasi, survei lapangan, maupun penawaran harga terbaik sesuai kebutuhan proyek Anda.
-
Daftar Harga Metering CT Class 3 & 5VA , 60-5000/5A
RATIO ID (mm) OD (mm) H (mm) Harga Katalog ~ Harga Jual 60/5A 35 70 30 300.000 ~ 201.000 100/5A 35 70 30 309.600 ~ 207.432 150/5A 35 70 30 324.000 ~ 217.080 200/5A 45 70 25 231.600 ~ 155.172 250/5A 45 70 25 246.000 ~ 164.820 300/5A 45 70 25 254.400 ~ 170.448 400/5A 45 70 25 285.600 ~ 191.352 500/5A 65 100 25 392.400 ~ 262.908 600/5A 65 100 25 422.400 ~ 283.008 800/5A 65 100 25 480.000 ~ 321.600 1000/5A 90 130 30 606.000 ~ 406.020 1200/5A 90 130 30 663.600 ~ 444.612 1500/5A 90 130 30 747.600 ~ 500.892 1600/5A 90 130 30 776.400 ~ 520.188 2000/5A 130 165 30 846.000 ~ 566.820 2500/5A 130 165 30 981.600 ~ 657.672 3000/5A 130 165 30 1.117.200 ~ 748.524 3200/5A 130 165 30 1.177.200 ~ 788.724 3500/5A 125 170 30 1.255.200 ~ 840.984 4000/5A 125 170 35 1.390.800 ~ 931.836 5000/5A 125 170 35 1.659.600 ~ 1.111.932 Untuk Informasi Ketersediaan dan Harga Terkni : Hubungi kami
Product Description
MH Current Transformer (MH CT) is used in energy metering and protection application. Designed for use in low voltage 50/60Hz network, the current transformer is installed in electrical switch board, control panel or motor control centre. High grade annealed grainoriented silicon steel is used for current transformer’s core to provide improved accuracy and linearity of measurement.
The MH Current Transformer can be directly installed onto bare copper busbar up to 720VAC rating. Available in a wide variety of dimensions and current ratio rating. Connection to the secondary winding is made via two bolt terminals. Customized model can be manufactured to
customer specification.MH Current Transformer is designed, manufactured and tested in accordance with IEC 60044-1 and IEC 61869-1/2 standards. This ensures that each current transformer delivers accurate
measurements when operating at the rated current or within the defined accuracy limit factors.
Metering CT / Selection Guide
- Class 0.2 : For measuring the energy for revenue proposes. Maximum of 0.2% ratio error at 100% rated current.
- Class 0.5S : For measuring the energy purposes. Maximum of 0.5% ratio error from 20% rated current and above.
- Class 0.5 : For measuring the energy purposes. Maximum of 0.5% ratio error at 100% rated current.
- Class 1 : For general metering. Maximum of 1.0% ratio error at 100% rated current
Technical Data
- Construction : Tape wound toroidal
- Highest voltage : 0.72V
- Rated insulation level : 3kV 60 sec
- Rated frequency : 50 or 60Hz
- Insulating material : Homopolymer Polyvinyl Chloride
- Class of insulation : B
- Rated short-time thermal current : 60 x Ipri (100kA max)
- Applied technical standards : IEC 61869-1, IEC 61869-2
- Certificates : CE, UKCA, RoHS
⚡ SOLUSI TERPADU MECHANICAL & ELECTRICAL (M&E) ⚡
Kami hadir sebagai mitra terpercaya untuk kebutuhan kelistrikan, tenaga listrik, dan fasilitas bangunan industri maupun komersial.
🔹 Produk Kelistrikan
✓ MCB
✓ MCCB
✓ ACB
✓ Capacitor Bank
✓ Active Harmonic Filter (AHF)
✓ Detuned Reactor
✓ Lightning Counter
✓ Berbagai aksesoris kelistrikan🔹 Panel Listrik
✓ Panel MDP / LVMDP
✓ Panel SDP
✓ Panel ATS
✓ Panel AMF
✓ Panel Capacitor Bank
✓ Panel Kontrol Motor
✓ Panel Lightning Protection
✓ Custom Panel sesuai kebutuhan🔹 Transformator (Trafo)
✓ Pengadaan Unit Baru
✓ Pemasangan & Penggantian
✓ Tambah Daya
✓ Inspeksi & Diagnosa
✓ Perbaikan & Penggantian Komponen
✓ Penggantian Oli Trafo
✓ Testing & Commissioning🔹 Cubicle Tegangan Menengah
✓ Pengadaan & Instalasi
✓ Konstruksi Lapangan
✓ Testing & Commissioning
✓ Maintenance & Troubleshooting🔹 Sistem Penangkal Petir & Grounding
✓ Sistem Konvensional
✓ Sistem Elektrostatik
✓ Grounding System
✓ Pengujian & Sertifikasi🔹 UPS & Genset
✓ Pengadaan Unit Baru
✓ Instalasi & Integrasi Sistem
✓ Testing & Commissioning
✓ Maintenance & Troubleshooting🔹 Elevator & Escalator
✓ Pengadaan & Instalasi
✓ Modernisasi Sistem
✓ Maintenance Berkala
✓ Perbaikan & Troubleshooting🔹 Pembangunan Gardu Listrik
✓ Engineering Design
✓ Konstruksi Sipil
✓ Instalasi Mekanikal & Elektrikal
✓ Testing & Commissioning
✓ Rehabilitasi & Perawatan🏭 Melayani kebutuhan:
• Pabrik & Industri
• Gedung Perkantoran
• Rumah Sakit
• Hotel
• Mall & Pusat Perbelanjaan
• Sekolah & Kampus
• Kawasan Industri
• Fasilitas Pemerintah📞 Hubungi kami untuk konsultasi, survei lapangan, maupun penawaran harga terbaik sesuai kebutuhan proyek Anda.
-
Distributor Transformer / Trafo / Step Down
Brand : Trafindo
Capacity : 1000 kVA
Dimension L x W x H (mm) : 1725 x 1185 x 1615
No Load Losses (P 0) : 1900 Watt
No Load Losses (P Cu) : 13000 Watt
Impedance at 75°C : 5.0%
Exciting Current (I 0) : 2.0%
Voltage Regulation :
– Cos φ = 1.0 : 1.42%
– Cos φ = 0.8 : 3.98%Transformer Oil Volume : 700 Liters
Transformer Total Weight (Approx) : 2.560 Kgs
Bersertifikasi :
- ISO 9001 : 2015, 14001 : 2015, dan 45001 : 2018
- LMK (PLN)
Serta pabrikan mampu memproduksi berbagai spesifikasi sesuai dengan kebutuhan pelanggan, hingga tegangan 36 kV dan kapasitas 25 MVA dan menjamin akan kualitas yang tinggi.
Price : Call Us
-
Distributor Transformer / Trafo / Step Down
Brand : Trafindo
Capacity : 1250 kVA
Dimension L x W x H (mm) : 1785 x 1195 x 1765
No Load Losses (P 0) : 2000 Watt
No Load Losses (P Cu) : 17000 Watt
Impedance at 75°C : 5.5%
Exciting Current (I 0) : 2.0%
Voltage Regulation :
– Cos φ = 1.0 : 1.50%
– Cos φ = 0.8 : 4.34%Transformer Oil Volume : 900 Liters
Transformer Total Weight (Approx) : 2980 Kgs
Bersertifikasi :
- ISO 9001 : 2015, 14001 : 2015, dan 45001 : 2018
- LMK (PLN)
Serta pabrikan mampu memproduksi berbagai spesifikasi sesuai dengan kebutuhan pelanggan, hingga tegangan 36 kV dan kapasitas 25 MVA dan menjamin akan kualitas yang tinggi.
Price : Call Us
-
Distributor Transformer / Trafo / Step Down
Brand : Trafindo
Capacity : 1600 kVA
Dimension L x W x H (mm) : 1925 x 1355 x 1810
No Load Losses (P 0) : 2200 Watt
No Load Losses (P Cu) : 20500 Watt
Impedance at 75°C : 6.0%
Exciting Current (I 0) : 2.0%
Voltage Regulation :
– Cos φ = 1.0 : 1.45%
– Cos φ = 0.8 : 4.62%Transformer Oil Volume : 960 Liters
Transformer Total Weight (Approx) : 3435 Kgs
Bersertifikasi :
- ISO 9001 : 2015, 14001 : 2015, dan 45001 : 2018
- LMK (PLN)
Serta pabrikan mampu memproduksi berbagai spesifikasi sesuai dengan kebutuhan pelanggan, hingga tegangan 36 kV dan kapasitas 25 MVA dan menjamin akan kualitas yang tinggi.
Price : Call Us
-
Distributor Transformer / Trafo / Step Down
Brand : Trafindo
Capacity : 200 kVA
Dimension L x W x H (mm) : 1200 x 770 x 1310
No Load Losses (P 0) : 400 Watt
No Load Losses (P Cu) : 2600 Watt
Impedance at 75°C : 4.0%
Exciting Current (I 0) : 2.2%
Voltage Regulation :
– Cos φ = 1.0 : 1.37%
– Cos φ = 0.8 : 3.33%Transformer Oil Volume : 260 Liters
Transformer Total Weight (Approx) : 1.050 Kgs
Bersertifikasi :
- ISO 9001 : 2015, 14001 : 2015, dan 45001 : 2018
- LMK (PLN)
Serta pabrikan mampu memproduksi berbagai spesifikasi sesuai dengan kebutuhan pelanggan, hingga tegangan 36 kV dan kapasitas 25 MVA dan menjamin akan kualitas yang tinggi.
Price : Call Us
-
Distributor Transformer / Trafo / Step Down
Brand : Trafindo
Capacity : 3000 kVA
Dimension L x W x H (mm) : 2220 x 1540 x 2230
No Load Losses (P 0) : 3000 Watt
No Load Losses (P Cu) : 32500 Watt
Impedance at 75°C : 7.5%
Exciting Current (I 0) : 1.8%
Voltage Regulation :
– Cos φ = 1.0 : 1.36%
– Cos φ = 0.8 : 5.46%Transformer Oil Volume : 1650 Liters
Transformer Total Weight (Approx) : 5500 Kgs
Bersertifikasi :
- ISO 9001 : 2015, 14001 : 2015, dan 45001 : 2018
- LMK (PLN)
Serta pabrikan mampu memproduksi berbagai spesifikasi sesuai dengan kebutuhan pelanggan, hingga tegangan 36 kV dan kapasitas 25 MVA dan menjamin akan kualitas yang tinggi.
Price : Call Us
