socomec
-
POLE ADDITIONNEL M1 63A
Switched fourth pole module for SIRCO M – 22001006Brand : Socomec
Type : Accessories for Load Breaker Switch
Spek : SIRCO M / 63A
Garansi 1 Tahun
Rp90,836.00 -

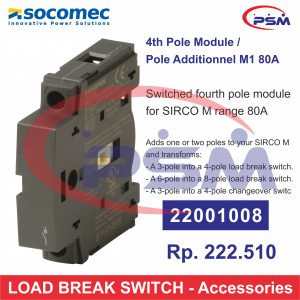

POLE ADDITIONNEL M1 80A
Switched fourth pole module for SIRCO M – 22001008Brand : Socomec
Type : Accessories for Load Breaker Switch
Spek : SIRCO M / 80A
Garansi 1 Tahun
Rp222,510.00 -

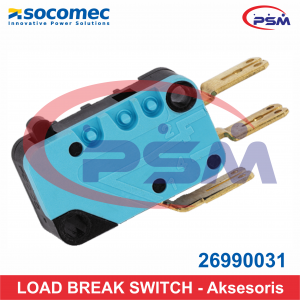

Socomec Pre-break Auxiliary Contact / Position 1 / 1 NO / 1 NC for SIRCO 125-3150A
Auxiliary contact for pre-breaking and 0 and I position signalling used to
monitor the position of the switch disconnector or to provide pre-break
information.General characteristic :
– 1 to 2 NO/NC auxiliary contacts.
– 1 to 4 NO/NC auxiliary contacts.
– 1 to 2 low level NO/NC auxiliary contacts.Brand : Socomec
Type : Accessories For Load Break Switch
Referensi : 26990031
Spesifikasi :Colour : Black
L x W x D (m) : 0,012 x 0,098 x 0,128
Weight (kg) : 0,024Garansi 1 Tahun
Rp161,255.00 -
Socomec Pre-break Auxiliary Contact / Position 2 / 1 NO / 1 NC for SIRCO 125-3150A
Auxiliary contact for pre-breaking and 0 and I position signalling used to
monitor the position of the switch disconnector or to provide pre-break
information.General characteristic :
– 1 to 2 NO/NC auxiliary contacts.
– 1 to 4 NO/NC auxiliary contacts.
– 1 to 2 low level NO/NC auxiliary contactsBrand : Socomec
Type : Accessories For Load Break Switch
Referensi : 26990031
Spesifikasi :Colour : Black
L x W x D (m) : 0,012 x 0,098 x 0,128
Weight (kg) : 0,024Garansi 1 Tahun
Rp161,255.00 -

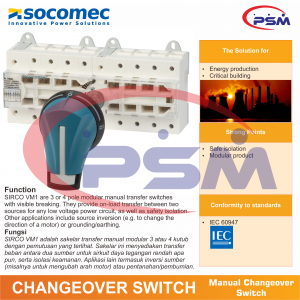

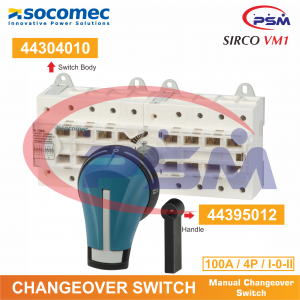

SIRCO VM1 Manual Changeover Switch
Brand : SOCOMEC
Type : SIRCO VM1
Referensi : 44304010
Spesifikasi :Rate (A) : 100
Poles : 4
Switching type : I-0-II
Rate operation (V) : 400…690
Max. rated operation (V) : 800
L x W x D (m) : 0,255 x 0,12 x 0,15
Weight (kg) : 1,36
(IP), front side : IP20Garansi 1 Tahun
Rp3,052,955.00 -
SIRCO VM1 Manual Changeover Switch
Brand : SOCOMEC
Type : SIRCO VM1
Referensi : 44304012
Spesifikasi :Rate (A) : 120
Poles : 4
Switching type : I-0-II
Rate operation (V) : 400…690
Max. rated operation (V) : 800
L x W x D (m) : 0,255 x 0,12 x 0,15
Weight (kg) : 1,40
(IP), front side : IP20Garansi 1 Tahun
Rp3,138,597.00 -
SIRCO VM1 Manual Changeover Switch
Brand : SOCOMEC
Type : SIRCO VM1
Referensi : 44304006
Spesifikasi :Rate (A) : 63
Poles : 4
Switching type : I-0-II
Rate operation (V) : 400…690
Max. rated operation (V) : 800
L x W x D (m) : 0,253 x 0,113 x 0,147
Weight (kg) : 1,36
(IP), front side : IP20Garansi 1 Tahun
Rp2,549,275.00 -

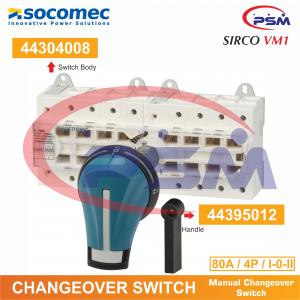

SIRCO VM1 Manual Changeover Switch
Brand : SOCOMEC
Type : SIRCO VM1
Referensi : 44304008
Spesifikasi :Rate (A) : 80
Poles : 4
Switching type : I-0-II
Rate operation (V) : 400…690
Max. rated operation (V) : 800
L x W x D (m) : 0,255 x 0,11 x 0,147
Weight (kg) : 1,36
(IP), front side : IP20Garansi 1 Tahun
Rp2,864,860.00 -
Sircover Manual Changeover Switch
Brand : SOCOMEC
Type : SIRCOVER / Manual Changeover Switch
Rating (A) : 1250
Poles : 4
Referensi : 41AC4120
Switch : I-0-II
Direct operation handle 0-1 type J3 Black
Type : DIR HANDLE J3N
Referensi : 11321111
ACCESSORIES
- EXTERNAL HANDLE
External operation handle 0-1 type S4 Black IP65
Type : COMMANDE FE S4N-65 D-G
Referensi : 14433113 - SHAFT FOR EXTERNAL HANDLE
Type : SHAFT TYPE S-15X12-320MM
Standard lengths : 200 mm, 320 mm, 400 mm, 500 mm.
Referensi : 14011532
HARGA EXTERNAL HANDLE + SHAFT : Rp. 2.258.222 - AUXILIARY CONTACT
Pre-break auxiliary contact 1st/2nd NO/NC for SIRCOVER
125A-1600A
Type : 1ER OU 2E CA OF DE PRECOUPURE
General :
– Up to 2 NO/NC auxiliary contacts (1 fitted as standard).
– Connection to the control circuit by 6.35 mm fast-on terminal.
– Electrical characteristics : 30,000 operations.
Referensi : 41090021
HARGA : Rp. 330.014
Garansi 1 Tahun
Rp21,420,541.00 - EXTERNAL HANDLE
-
Sircover Manual Changeover Switch
Brand : SOCOMEC
Type : SIRCOVER / Manual Changeover Switch
Rating (A) : 125
Pole : 4
Referensi : 41AC4013
Switch : I-0-II
Direct operation handle 0-1 type B3 Black
Type : POIGNEE B3N-G
Referensi : 41995012
ACCESSORIES
- EXTERNAL HANDLE
External operation handle 0-1 type S2 Black IP55
Type : COMMANDE FE S2N-55 D-G
Referensi : 14212113 - SHAFT FOR EXTERNAL HANDLE
Type : SHAFT TYPE S-10X10-320MM
Standard lengths : 200 mm, 320 mm, 400 mm, 500 mm.
Referensi : 14001032HARGA EXTERNAL HANDLE + SHAFT Rp. 741.485
- AUXILIARY CONTACT
Pre-break auxiliary contact 1st/2nd NO/NC for SIRCOVER
125A-1600A
Type : 1ER OU 2E CA OF DE PRECOUPURE
General :
– Up to 2 NO/NC auxiliary contacts (1 fitted as standard).
– Connection to the control circuit by 6.35 mm fast-on terminal.
– Electrical characteristics : 30,000 operations.
Referensi : 41090021Harga : Rp. 330.014
Garansi 1 Tahun
Rp3,227,485.00 - EXTERNAL HANDLE
-
Sircover Manual Changeover Switch
Brand : SOCOMEC
Type : SIRCOVER / Manual Changeover Switch
Rating (A) : 1600
Poles : 4
Referensi : 41AC4160
Switch : I-0-II
Direct operation handle 0-1 type J3 Black
Type : DIR HANDLE J3N
Referensi : 11321111
ACCESSORIES
- EXTERNAL HANDLE
External operation handle 0-1 type S4 Black IP65
Type : COMMANDE FE S4N-65 D-G
Referensi : 14433113 - SHAFT FOR EXTERNAL HANDLE
Type : SHAFT TYPE S-15X12-320MM
Standard lengths : 200 mm, 320 mm, 400 mm, 500 mm.
Referensi : 14011532
HARGA EXTERNAL HANDLE + SHAFT : Rp. 2.258.222 - AUXILIARY CONTACT
Pre-break auxiliary contact 1st/2nd NO/NC for SIRCOVER
125A-1600A
Type : 1ER OU 2E CA OF DE PRECOUPURE
General :
– Up to 2 NO/NC auxiliary contacts (1 fitted as standard).
– Connection to the control circuit by 6.35 mm fast-on terminal.
– Electrical characteristics : 30,000 operations.
Referensi : 41090021
HARGA : Rp. 330.014
Garansi 1 Tahun
Rp33,689,576.00 - EXTERNAL HANDLE
-
Sircover Manual Changeover Switch
Brand : SOCOMEC
Type : SIRCOVER / Manual Changeover Switch
Rating (A) : 160
Poles : 4
Referensi : 41AC4016
Switch : I-0-II
Direct operation handle 0-1 type B3 Black
Type : POIGNEE B3N-G
Referensi : 41995012
ACCESSORIES
- EXTERNAL HANDLE
External operation handle 0-1 type S2 Black IP55
Type : COMMANDE FE S2N-55 D-G
Referensi : 14212113 - SHAFT FOR EXTERNAL HANDLE
Type : SHAFT TYPE S-10X10-320MM
Standard lengths : 200 mm, 320 mm, 400 mm, 500 mm.
Referensi : 14001032HARGA EXTERNAL HANDLE + SHAFT Rp. 741.485
- AUXILIARY CONTACT
Pre-break auxiliary contact 1st/2nd NO/NC for SIRCOVER
125A-1600A
Type : 1ER OU 2E CA OF DE PRECOUPURE
General :
– Up to 2 NO/NC auxiliary contacts (1 fitted as standard).
– Connection to the control circuit by 6.35 mm fast-on terminal.
– Electrical characteristics : 30,000 operations.
Referensi : 41090021Harga : Rp. 330.014
Garansi 1 Tahun
Rp3,725,032.00 - EXTERNAL HANDLE
